G1 Software Install Procedure |
Godox have released the much anticipated new G1 firmware update software, which very much simplifies user firmware update procedures. NOTE – Firmware files downloaded using the Internet Explorer browser are for some reason changed to a .man file extension, instead of the regular .rar file type. If your system can not extract compressed .man files, then you can simply rename the files to .rar. Free 7-Zip software can extract .rar and .man compressed files if needed – www.7-zip.org NOTE - Before connecting the device (strobe or radio trigger etc) to your computer via a PC sync cord, its important to make sure the flash or trigger is turned OFF first. Its also important to follow Godox’s instructions on draining any remaining power from the device where needed, before connecting to the computer – CHECKING FIRMWARE VERSION INSTALLED Godox use various methods to access and display the firmware version currenly installed on their flashes and radio triggers – X1T – X1R – XT-32 - V860 - V860II / TT685 – AD360II AD600B / AD600BM - If all else fails, each products Instruction Manual should detail how the firmware version can be accessed. |
GODEX EZ 2 DRIVER FOR MAC DOWNLOAD - When you click on the Help button in About dialog help is opened, but it is not linked to any page. Bug fixed, where some changes on stocks updated. GODEX EZ-2200 PLUS DRIVER FOR MAC DOWNLOAD - Label Godex ez Align the Label Guides to the edge of label. This printer is optimal choice for warehouses and factories. Description Specifications Label printer Godex can be completed with head with or dpi dots per inch resolution. When printer is on Thermal Transfer Mode, it is necessary to install the ribbon in.

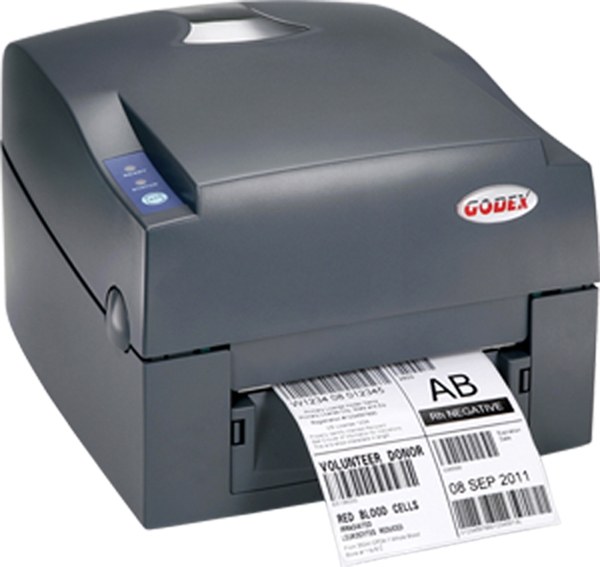

GoDEX G530 Specifications
Godex Printer Software
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | 4IPS (102 mm/s) |
| Print Width | 4.16' (105.7 mm) |
| Print Length | Min. 0.16” (4 mm)**; Max. 30” (762 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 8MB Flash (4MB for user storage) / 16MB SDRAM |
| Sensor Type | Adjustable reflective sensor. Fixed transmissive sensor, central aligned |
| Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.0024” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 5” (127 mm) Core diameter: 1”, 1.5”, 3' (25.4 mm, 38.1 mm, 76.2 mm) |
| Ribbon | Types: Wax, wax/resin, resin Length: 981’ (300 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67“ (68 mm) Core diameter: 1” (25.4 mm) |
| Printer Language | EZPL, GEPL, GZPL auto switch |
| Software | Label design software: GoLabel (for EZPL only) Driver: MAC、 Linux、Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008 DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF fonts：TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar codes: Code 39, Code 93, EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Postnet, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, ISBT -128, Code 32 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code, Code 49, Codablock F , TLC 39 |
| Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB + Parallel Port USB + Serial Port + Ethernet |
| Control Panel | Two bi-color status-LEDs: Ready, Status Control key: FEED |
| Power | Auto Switching 100-240VAC, 50-60Hz |
| Environment | Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Agency Approvals | CE (EMC), FCC Class A, CB, CCC, cUL, KCC, BIS, EAC |
| Dimension | Length: 11.2” (285 mm) Height: 6.8” (171 mm) Width: 8.9” (226 mm) |
| Weight | 5.51 lbs (2.5 Kg), excluding consumables |
| Options | Cutter Module Label Dispenser External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder |
| Note | * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
Driver Godex Ez 1100
Mac driver free download - Paragon NTFS for Mac, Apple Mac OS Update 8.6, Apple Mac OS Update 9.0.4, and many more programs. Peninsula Mac Thermal Driver Godex. Mac Thermal Printer Driver from Peninsula allows any OS X computer to print directly to thermal printers using the standard print dialogs! The drivers work with all versions of OS X after 10.8. Fully OS X compatible, from OS X 10.8 to 10.13. All the downloads you'll ever need for GoDEX, including Brochures, Quick Guides, Manuals, Drivers and Videos. Can't see the download you need - get in touch!
